Built with advanced forming technology and a durable structural design, this machine ensures continuous, efficient, and accurate panel production that meets U.S. building standards and customer-specific requirements.

R-Panels are widely recognized for their strength, long service life, and weather resistance. Their interlocking design provides excellent protection against wind and rain, while maintaining an attractive appearance. With Hener’s R-Panel Roll Forming Machine, manufacturers can achieve high productivity, precise shaping, and minimal material waste, making it the ideal choice for both large-scale and custom sheet production.

Technical Specifications

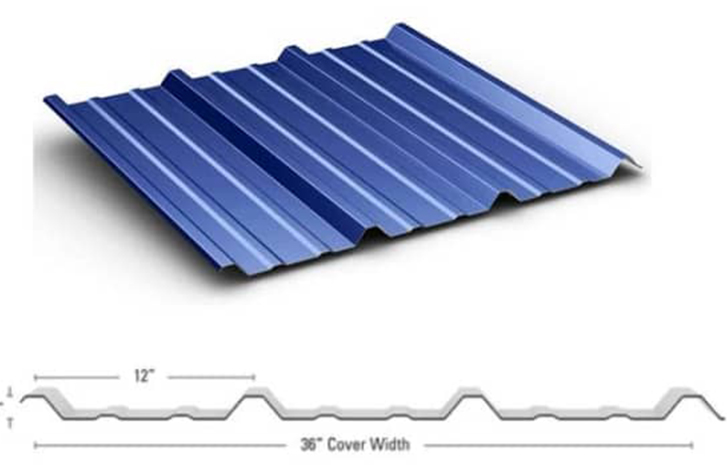

Panel Type: 36-inch R-Panel
Effective Width: 36 inches (914 mm)
Profile Depth: 1.5"–2.5" (38–64 mm), depending on the profile design
Rib Height: 0.5"–1" (13–25 mm), for added rigidity and visual appeal
Material Options:

• Galvanized steel (GI)

• Pre-painted galvanized steel (PPGI)

• Aluzinc (Galvalume) steel
  Material Thickness: 0.3–0.8 mm
  Panel Length: Customized according to project dimensions and building design

Each forming line can be tailored to match your preferred R-panel profile, ensuring compatibility with U.S. construction standards and regional specifications.

How the R-Panel Roll Forming Machine Operates

1. Decoiling Unit
   The production process begins with a heavy-duty decoiler that feeds the steel coil into the forming line. The uncoiling process is smooth and continuous, ensuring steady material delivery without deformation or interruptions.

1. Roll Forming Stations

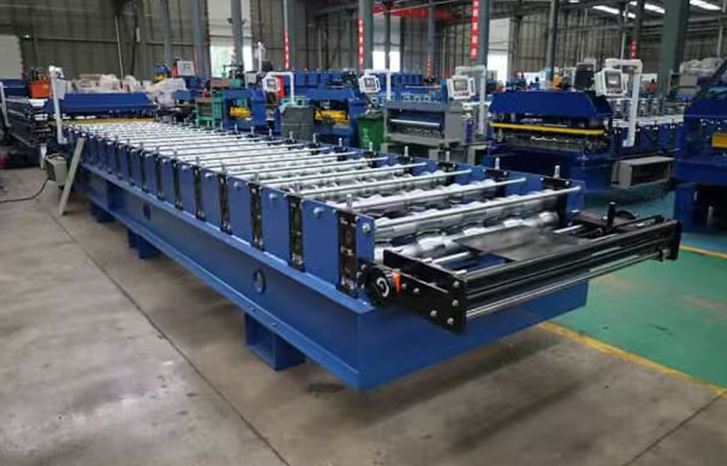

   The core section of the machine features multiple precision-machined forming stations. Each station gradually bends and shapes the steel sheet into the exact R-panel profile. With hardened rollers and robust shafts, the forming process guarantees uniform shape accuracy and a smooth surface finish.

2. Cut-to-Length System
   Once the sheet reaches the required length, the cut-off system—powered by a hydraulic or servo-driven mechanism—automatically trims the panel. The cutting operation is synchronized with the forming speed to ensure clean edges and dimensional accuracy.

3. Stacking and Output
   After cutting, panels can be automatically stacked and aligned for easy handling. This reduces manual labor, speeds up packaging, and protects the panels from scratches or bending during transfer.

4. Quality Assurance
   Throughout production, the machine can be equipped with sensors and monitoring systems to check panel thickness, alignment, and coating quality. This ensures consistent output and reduces defective rates, maintaining top-level reliability.




Features and Advantages

• High Efficiency and Output: Continuous roll forming design ensures stable, high-speed operation suitable for large-volume production.

• Precision Forming: Each roller is CNC-processed to maintain dimensional accuracy, ensuring every panel meets required tolerances.

• Durable Construction: Built from welded steel frames and high-strength components for long-term stability and reduced vibration.

• Flexible Customization: Supports various panel widths, rib heights, and steel materials according to client needs.

• Easy Operation and Maintenance: Integrated control systems with touch-screen interfaces simplify setup, monitoring, and troubleshooting.

• Automatic Control: Equipped with PLC and HMI systems for automatic length measurement, cutting, and stacking.

• Low Noise and Smooth Performance: Advanced gear and chain transmission system reduces operational noise and improves forming precision.

•


Applications

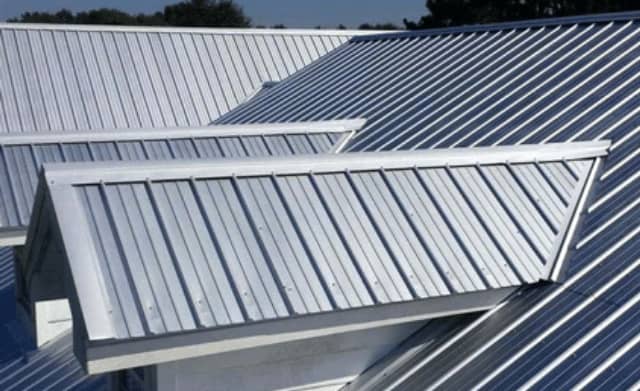

R-Panels produced by this machine are widely used across various sectors, including:

• Industrial Buildings: Factories, workshops, and warehouses

• Commercial Structures: Shopping centers, office complexes, and distribution hubs

• Agricultural Facilities: Barns, grain storage, and equipment sheds

• Public Projects: Schools, hospitals, and sports facilities

Their versatility and durability make R-panels a preferred solution for both roofing and wall systems, offering a cost-effective way to achieve weatherproof and energy-efficient construction.
